Stacked Bar Chart

Single-View Plots / Bar Charts · bar · Partial · stacked_bar_weather

The spec

{
  "$schema": "https://vega.github.io/schema/vega-lite/v5.json",
  "data": {"url": "data/seattle-weather.csv"},
  "mark": "bar",
  "encoding": {
    "x": {
      "timeUnit": "month",
      "field": "date",
      "type": "ordinal",
      "title": "Month of the year"
    },
    "y": {
      "aggregate": "count",
      "type": "quantitative"
    },
    "color": {
      "field": "weather",
      "type": "nominal",
      "scale": {
        "domain": ["sun", "fog", "drizzle", "rain", "snow"],
        "range": ["#e7ba52", "#c7c7c7", "#aec7e8", "#1f77b4", "#9467bd"]
      },
      "title": "Weather type"
    }
  }
}

PlotKit's render (light and dark follow your system setting)

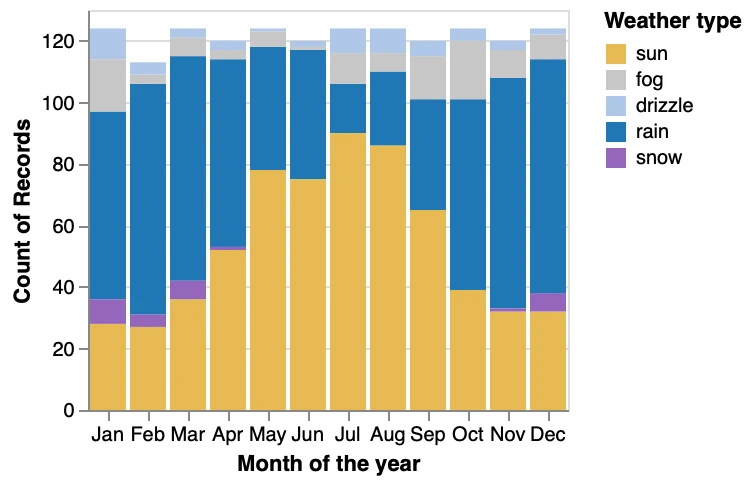

Stacked Bar Chart: a bar chart rendered by PlotKit from the spec above
